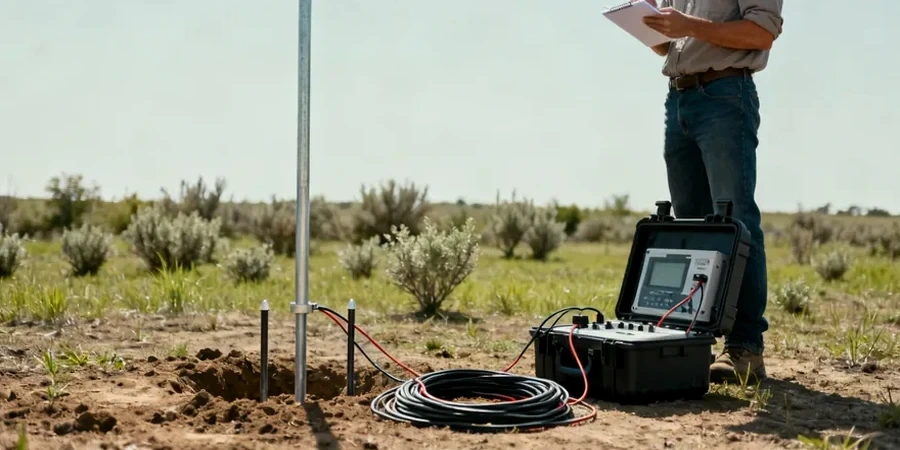

The most common mistake we see in Richmond is assuming the subsurface is uniform just because the top few feet look fine on a test pit. You dig down, hit a stiff red clay, and think you are good to go. Then the excavator gets stuck in a decomposed granite lens or hits groundwater in a buried stream channel that nobody mapped. That is where electrical resistivity changes the game. Instead of drilling blind every 50 feet, Vertical Electrical Sounding gives us a continuous profile of what lies beneath — saturated zones, bedrock topography, and clay thickness — without tearing up the site. For projects near the James River or in the Triassic basin, understanding the resistivity contrast between unconsolidated alluvium and weathered bedrock saves time and prevents nasty surprises during foundation design. Our field crew runs Schlumberger arrays with stainless steel electrodes and a high-power transmitter that punches through Richmond's conductive clays down to depths of 100 feet or more. The data feeds directly into the geotechnical model, reducing the number of borings needed and sharpening the interpretation of SPT drilling results at critical locations.
Resistivity in Richmond is about finding the contrast between conductive coastal plain clays and resistive Piedmont bedrock — miss that boundary and your foundation estimate is off by thousands.
Technical details of the service in Richmond Virginia
Critical ground factors in Richmond Virginia
Here is something only a local technician would point out: Richmond's Triassic basin sediments — the red beds you see along I-95 north of the city — have almost the same resistivity signature as the weathered granite in the Piedmont, but completely different engineering behavior. If you interpret a low-resistivity zone as saturated clay when it is actually a decomposed siltstone with gypsum veins, you will spec the wrong foundation type. We have seen this confuse even experienced geophysicists who did not grow up working in the Richmond Basin. Our team cross-references every VES sounding with the USGS geologic quadrangle maps and, whenever possible, with at least one calibration boring. In karst-prone areas west of the city near the carbonate rock boundary, resistivity is also the most reliable way to spot air-filled voids before they become sinkholes under a slab-on-grade.
Our services
Our resistivity testing in Richmond is structured as a complete subsurface investigation package, from field acquisition to engineering interpretation.
2D Electrical Resistivity Tomography
Multi-electrode profiling with 56 or 84 takeouts for high-resolution cross-sections. Ideal for mapping buried utilities, old foundation remnants in Shockoe Bottom, and lateral changes in fill thickness across commercial development sites.
Vertical Electrical Sounding (VES) Array
Deep one-dimensional soundings using expanding Schlumberger spreads. We target 100+ foot penetration for bedrock mapping beneath proposed tower footings and for groundwater exploration in the crystalline aquifer underlying the Piedmont.
Common questions
What depth can VES reach in Richmond's soil conditions?
In the conductive clays common across Richmond, we typically achieve reliable data down to 100 feet with a 200W transmitter. Deeper penetration to 150 feet is possible in the more resistive soils west of the Chippenham Parkway where weathered granite dominates. We always run a pre-survey model based on site geology to confirm the expected current penetration before mobilizing.
How much does an electrical resistivity survey cost for a typical residential lot in Richmond?
For a standard VES sounding with two spread locations on a single-family lot, the cost ranges from US$650 to US$930, depending on access conditions and whether we need to clear vegetation for the electrode lines. A full 2D tomography line for a commercial site typically falls between US$1,200 and US$2,800 per line, including processing and a signed engineering report.
Can resistivity testing replace soil borings entirely?
No, and any firm that tells you otherwise is cutting corners. Resistivity is a geophysical method that measures bulk electrical properties — it does not give you a physical sample for lab testing. We use it to optimize the boring layout, not eliminate borings. A typical Richmond project combines 2-3 VES soundings with targeted SPT borings at the anomalies, saving 30-40% on the drilling budget while improving the overall site model.
How do you handle Richmond's urban sites with buried utilities and metal fences?
Urban noise is a real challenge. We use a cable layout that avoids known utility corridors and run a pre-survey noise test to identify zones of high cultural interference. For sites with heavy underground infrastructure, we switch to a pole-dipole array which is less sensitive to buried metal than Wenner or Schlumberger. The data still requires careful editing during inversion to remove bad data points caused by pipes or reinforced concrete.
What is the turnaround time from fieldwork to final report?
For a standard VES investigation with two soundings, you will have preliminary depth-to-bedrock plots within 3 business days. The final report with inverted resistivity sections, geologic interpretation, and correlation to any available boring logs takes 5 to 7 business days. We can expedite to 48 hours for time-sensitive excavation support if arranged before the field work.
